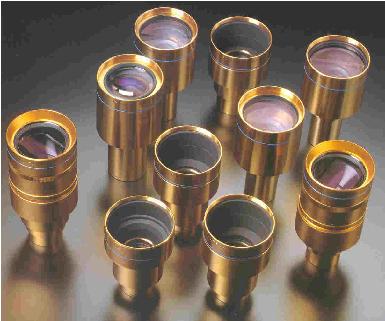

Sankor Standard Lens |
|||||||||
|
|
|
|||||||||
|
|
|
|||||||||

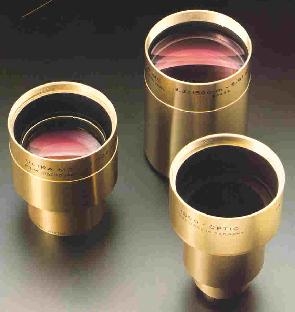

The highest quality Sankor 35mm anamorphic lenses guarantee the sharpest cinema Source pictures across the entire screen area. |
|
High resolution for crisp focus corner to corner |
|||||||||
Three different production models are available; the B type suitable for larger hardtops, the W type for medium/small size cinemas, and the H type, the reversing type, for drive-ins or any indoors having longer projection throws. |
|
Lens elements contain highest quality glass |
|||||||||
Flat lens from 29mm wide angle to 95mm |
|||||||||||
|
|
|
|||||||||
TYPE |
Projection Distance |
Full Length(L) |
a |
Diameter |
Weight 1pair(2pcs) |
|
Focal (MM) |
Length (Inch) |
Back Focal Length |
||
b |
c |
d |
|
||||||||
B |
50ft-500ft |
at 35ft174mm |
109mm |
95mm |
79.3mm |
70.6mm |
5kg |
|
45 |
1.77 |
68.0 |
50 |
2.17 |
35.7 |
|||||||||
W |
15ft-500ft |
at 150ft167mm |
97mm |
85mm |
79.3mm |
70.6mm |
4kg |
|
70 |
2.71 |
47.3 |
80 |
3.15 |
54.1 |
|||||||||
H |
50ft-1000ft |
at 150ft167mm |
97mm |
85mm |
79.3mm |
70.6mm |
4kg |
|
100 |
3.94 |
67.8 |
135 |
5.32 |
90.4 |
|||||||||
