Cinema Platter System |
|
|
|

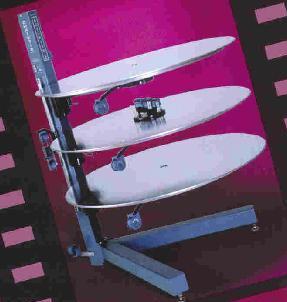

Christie AW3R |
|
|
|
Autowind Platter |
|
|
|
¡ß Mechanical fail safe/split film detector. |
|
¡ß Endless loop automatically converts to standard Autowind. |
|
¡ß Kind to film due to less handling. |
|
¡ß Less attention from operator in automated systems. |
|
¡ß Prevent misthreading and misframing. |
|
¡ß Eliminates scratching and dirt buildup due to film touching the floor during rethreading. |
|
¡ß Accommodates all types of film |
|
¡ß Operates in all climates |
|
|
|
Drive Method |
Permanent magnetic motor, 1/10 hp, variable speed90 VDC Amb. Temp 40¡ÆC. |
Power Requirements |
115 VAC 60 Hz, 4 amps/220VAC 50 Hz (Specify) |
Capacity |
2 1/2 Hours 35mm |
Protection |
Fail Safe Split Film Sensor |
Dimensions |
1890 H ¡¿1550 W ¡¿1600 D (mm) |
Weight |
166 Kg. Uncrated |
